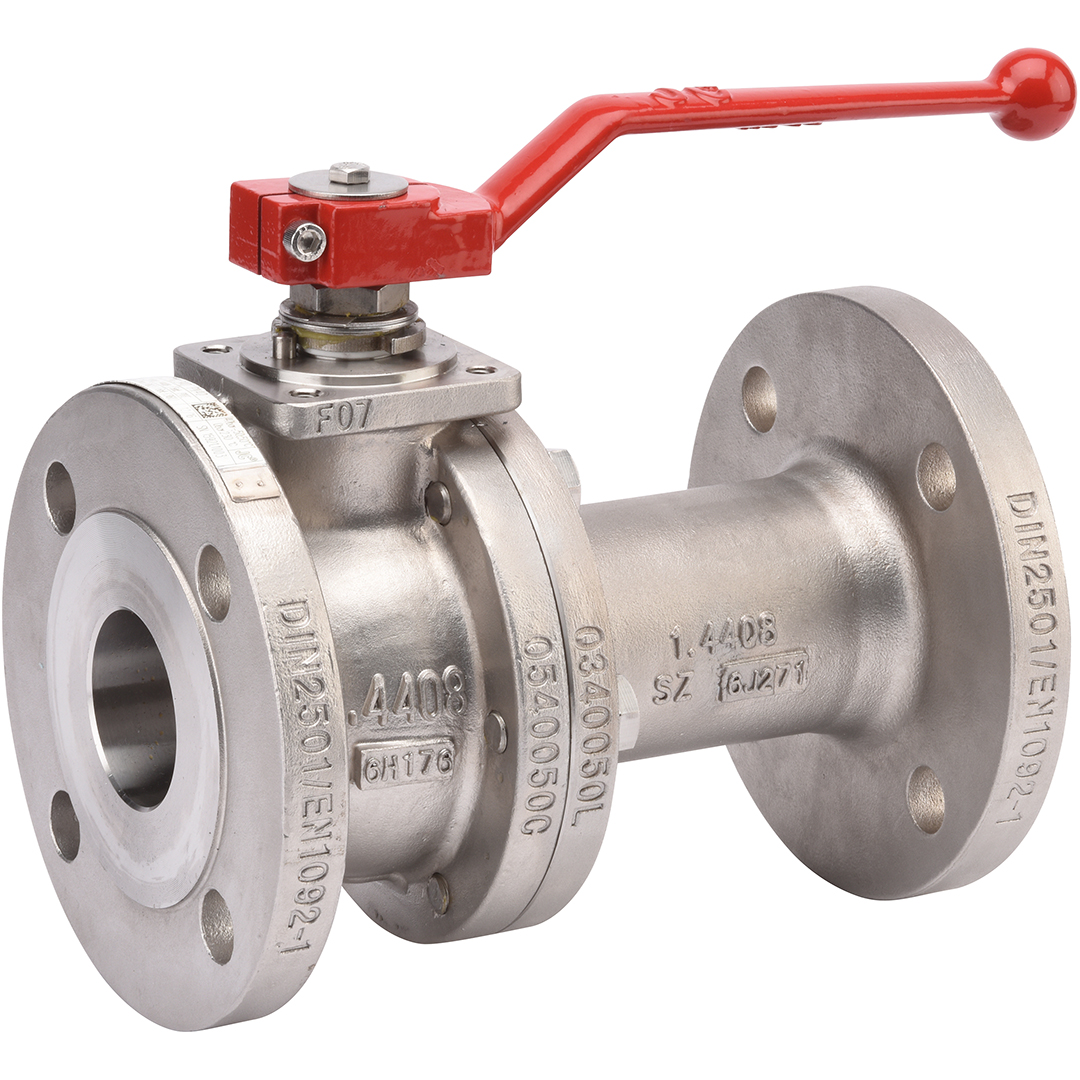

The 2-piece body ball valve series 340IIT, stainless steel, flanged PN40, motorizable, JC range, ATEX, PTFE seats, fire safety, degassing hole for chemicals, petrochemical, water, heating.
| Specification | Value |
|---|---|
| DN inches NPS | 2''1/2 |
| Option certificate 3.1 | Yes |
| Construction standard | EN 1983 - ISO 17292 - EN 12516 |
| CE risk category | IV Module H1 |
| NACE MR0175 | Yes |
| Fire safe standard | ISO 10497:2004. API 607 V5. API 6FA. BS 6755-2 |
| SIL | SIL 3 |
| EN face-to-face standard | EN 558 Series 1 |
| DIN face-to-face standard | DIN 3202 F1 |
| Face to face standard | EN 558 Series 1. DIN 3202 F1 |
| Brand | JC VALVES |
| Tightness test standard | EN 12266-1 Rate A |
| Stem sealing material | Graphite gland packing |
| Antistatic device | Yes |
| Steam | Yes |
| Degassing hole | Yes |
| Opening device | Handle |
| Fugitive emissions standard | ISO 15848-1 Class B. TA LUFT VDI 2440 |
| Application | Industry |
| ATEX atmosphere | Group II Cat. 2G/2D |
| Shaft/stem matérial | Stainless steel ASTM A479 type 316 |
| Square, star (mm) | MEP M22x16 |
| ATEX compatible | Yes |
| Torque (Nm) | 61 |
| DN | DN65 - 2''1/2 |
| Face to Face (mm) | 290 |
| Fluid | Hydrocarbons. gas |
| Kv (m³/h) | 550 |
| Body material | Stainless steel CF8M (1.4408) |
| Number of ways | 2 |
| Bore | Full |
| ISO pad 5211 | Yes |
| Packing gland | Yes |
| PS (bar) | 16 |
| Connections | Flanged PN10/16 |
| Seats | PTFE |
| Ball material | Stainless steel ASTM A351 CF8M |
| TS max (°C) | 230 |
| TS min (°C) | -50 |
| Ball valve design | Split body |
| ATEX zone | 1 & 21. 2 & 22 |
| Warranty period | 5 years |
| CE | Yes |
| Handle material | Ductile iron |
| Handle type | Red lever |
| Fire safe | Yes |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Flanged PN10/16 Stainless steel CF8M (1.4408) Full Split body DN65 - 2''1/2 | 316IIT065 | S1006836 |
€798.06
(excl. btw)
|
add to cart |
| Flanged PN10/16 Stainless steel CF8M (1.4408) Full Split body DN80 - 3'' | 316IIT080 | S1006837 |
€1,147.09
(excl. btw)
|
add to cart |
| Flanged PN10/16 Stainless steel CF8M (1.4408) Full Split body DN100 - 4'' | 316IIT100 | S1006838 |
€1,573.20
(excl. btw)
|
add to cart |
| Flanged PN10/16 Stainless steel CF8M (1.4408) Full Split body DN125 - 5'' | 316IIT125 | S1006839 |
€3,042.23
(excl. btw)
|
add to cart |
| Flanged PN10/16 Stainless steel CF8M (1.4408) Full Split body DN150 - 6'' | 316IIT150 | S1006840 |
€4,144.51
(excl. btw)
|
add to cart |
| Flanged PN10/16 Stainless steel CF8M (1.4408) Full Split body DN200 - 8'' | 316IIT200 | S1006841 |
€8,826.61
(excl. btw)
|
add to cart |
| Flanged PN10/16 Stainless steel CF8M (1.4408) Full Split body DN15 - 1/2'' | 340IIT015 | S1006842 |
€170.87
(excl. btw)
|
add to cart |
| Flanged PN10/16 Stainless steel CF8M (1.4408) Full Split body DN20 - 3/4'' | 340IIT020 | S1006843 |
€219.83
(excl. btw)
|
add to cart |
| Flanged PN10/16 Stainless steel CF8M (1.4408) Full Split body DN25 - 1'' | 340IIT025 | S1006844 |
€266.71
(excl. btw)
|
add to cart |
| Flanged PN10/16 Stainless steel CF8M (1.4408) Full Split body DN32 - 1''1/4 | 340IIT032 | S1006845 |
€390.70
(excl. btw)
|
add to cart |
| Flanged PN10/16 Stainless steel CF8M (1.4408) Full Split body DN40 - 1''1/2 | 340IIT040 | S1006846 |
€461.56
(excl. btw)
|
add to cart |
| Flanged PN10/16 Stainless steel CF8M (1.4408) Full Split body DN50 - 2'' | 340IIT050 | S1006847 |
€620.94
(excl. btw)
|
add to cart |
